Image Sensor |
1/2.7” |
|
Effective Pixels |
1920*1080 |
|
Pixel size |
3.0um*3.0um |
|
Scanning System |
Progressive scan |
|
Image sensor Data output |
Raw Data 10bits |
|
? |
? |
|
Video Comprossor |
MPJG/YUY2 |
|
Maximum Frame Rates FOR MJPG |
1920*1080? 20fps 1280*720?? 20fps 1280*960?? 20fps 800*600??? 20fps 640*480??? 20fps |
|
Maximum Frame Rates FOR YUV |
1920*1080? 5fps 1280*720?? 5fps 1280*960?? 5fps 800*600??? 5fps 640*480??? 20fps |
|
SNR max |
41dB |
|
Dynamic range |
62dB |
|
Digital interface |
4-pin 1.25mm USB2.0 |
|
Transfer rates |
480Mb/S |
|
Power requirements |
5V±5% |
|
Power Consumption |
Max 1.2W |
|
Operating temperature |
-30~70 ℃ |
|
Storage temperature(℃) |
-40~80 ℃/0~90RH |
|
OS |
Windows XP /vista/seven/8.1/Mac linux2.6.2(include UVC ) |
|

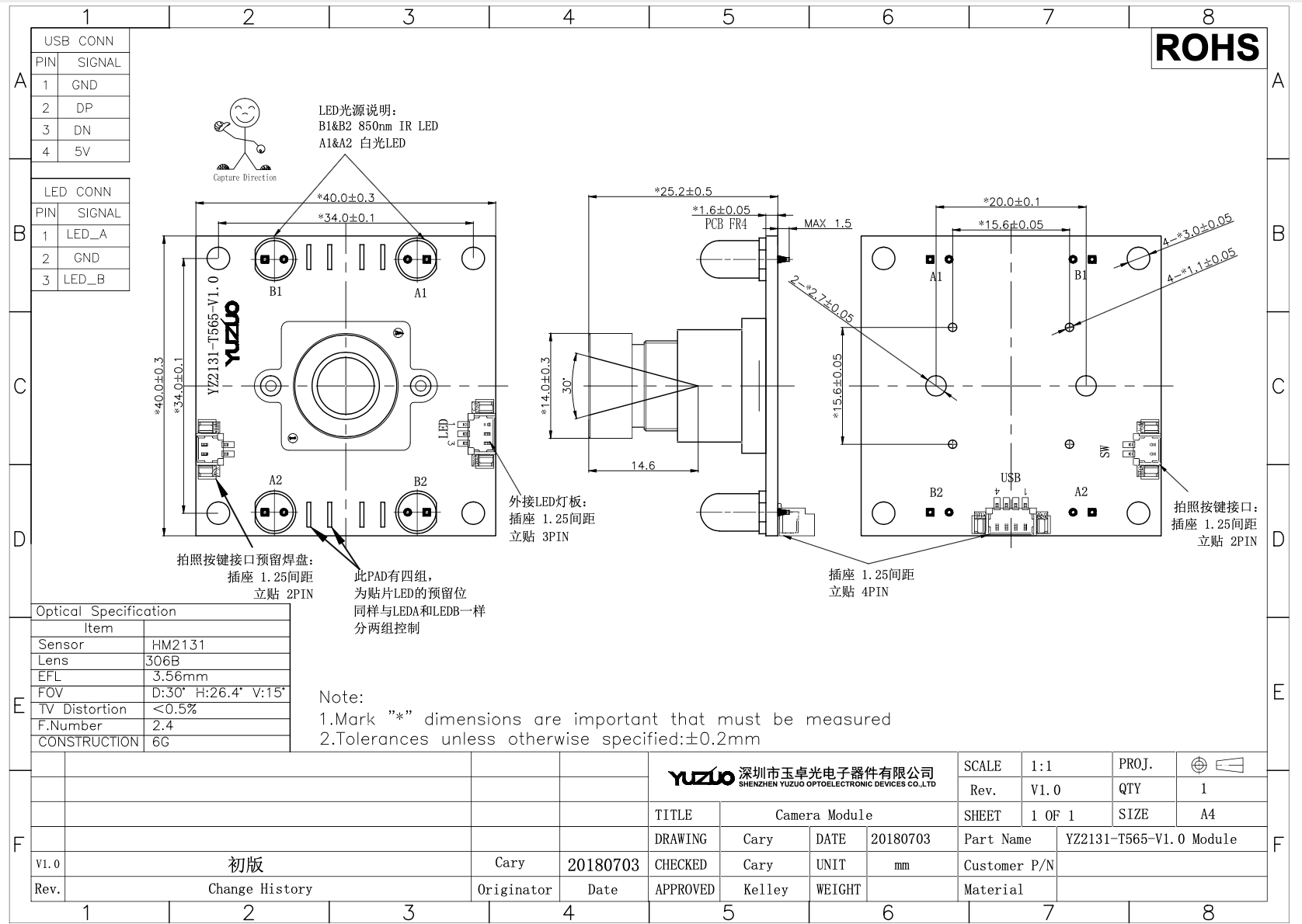

Dimension |
See drawings |
|
Customizing |
Yes |
?
